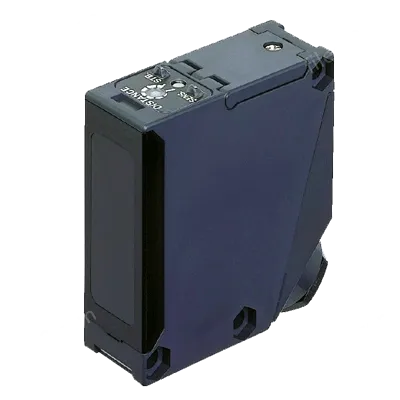

SUNX EQ-502T

Model EQ-502T

Compliant with standard/low voltage directive: EN IEC 60947-5-2

EMC Directive: EN IEC 60947-5-2

RoHS Directive

・GB/T 14048.10

Distance setting range 0.2-1.0m

(Note 1): The distance setting range refers to the maximum detection distance range that can be set by the distance setting adjuster. The sensor can detect objects above 0.1m.

(Note 2): The distance setting range, detection distance, and deviation are values relative to white matte paper (200x200mm).

Detection distance (at maximum set distance) 0.1-1.0m

(Note): The distance setting range, detection distance, and deviation are values relative to white matte paper (200x200mm).

Less than 10% of the action distance should be delayed

(Note): The distance setting range, detection distance, and deviation are values relative to white matte paper (200x200mm).

Repetitive accuracy (perpendicular to the detection axis) 4m

(Note): The distance setting range, detection distance, deviation, and repeatability accuracy are values relative to white matte paper (200 × 200mm).

Power supply voltage 24-240V AC ± 10% or 12-240V DC ± 10% pulsating P-P10% or less

Power consumption/current consumption AC: below 4V

DC: Below 30000

Output relay contact 1a

Switching capacity: 250V AC 3A (resistive load), 30V DC 3A (resistive load)

Electronic lifespan: Over 100000 cycles (opening and closing frequency of 1200 cycles/hour)

Mechanical lifespan: over 50 million cycles (opening and closing frequency 18000 times/hour)

Output: The output action can be selected by switching the switch between ON during detection and ON during non detection

Output: Short circuit protection-

Response time below 20ms

Working status indicator light orange LED (lights up when output is ON)

Stability indicator light green LED (lights up in stable operation state)

Detection mode switch equipped with mechanical 2-turn regulator with indicator
