MHDLTE3NF

Part Number MHDLTE3NF
Product Servo Driver
Details A6NF series
RTEX
Ultra high-speed Network type (Multi type)
with the safety function

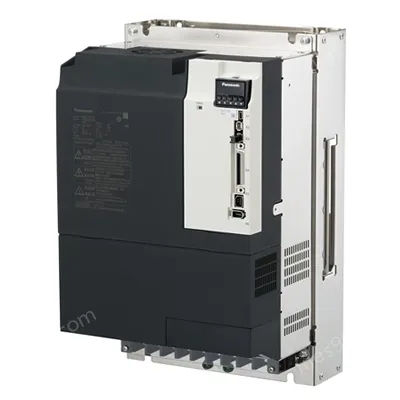

Product name MINAS A6N Series Servo Driver
Features Realtime Express (RTEX)
Advanced Network to realize high-precise real-time performance for Servo Control Item Specifications
Part Number MHDLTE3NF
Details A6NF series
RTEX
Ultra high-speed Network type (Multi type)
with the safety function
Family Name MINAS A6
Series A6NF series
Type RTEX, Ultra high-speed Network type (Multi type)
Frame H-Frame
Frequency response (kHz) 3.2
Control method Position control, Velocity control, Torque control, and Full-closed control
Safety Function with
Supply voltage 3-phase 200 V
I/F Classification of type RTEX
Dimensions (W) (Unit: mm) 244
Dimensions (H) (Unit: mm) 390
Dimensions (D) (Unit: mm) 222
Mass (kg) 14.2
Environment For more details, please refer to the instruction manual.
