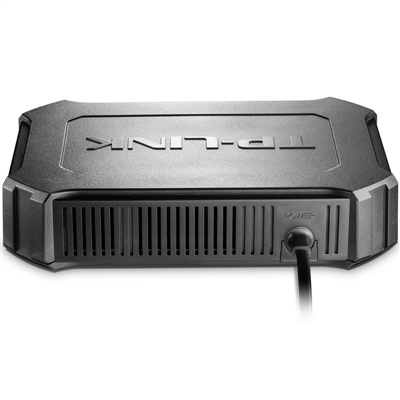

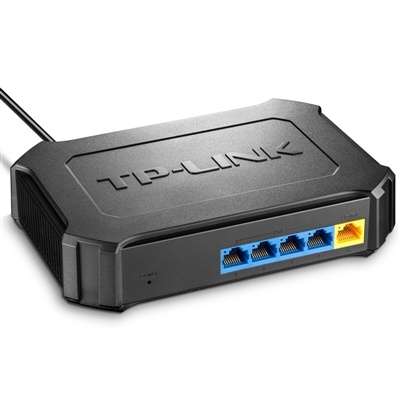

Ethernet PoE switch 4FE (PoE) + 1FE

TL-SF1005SP is a molded-case unmanaged PoE switch independently developed by TP-LINK, with 4 100 Gigabit ports supporting PoE power supply, in line with IEEE 802.3af standard, with a single-port PoE power of 15.4W and a maximum PoE output power of 40W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.

• 5 x 10/100M adaptive RJ45 ports, ports 1~4 support IEEE 802.3af standard PoE power supply
• The single-port POE power can reach 15.4W, and the maximum PoE output power of the whole machine is 40W
• Supports IEEE802.3X full-duplex flow control and backpressure half-duplex flow control
• Auto MDI/MDIX is supported
• All ports are capable of wire-speed forwarding

All 100 megabits

• Five 10/100 Base-T RJ45 ports are available.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• Four 10/100 Base-T RJ45 ports support PoE power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• In line with the IEEE 802.3af PoE power supply standard, the maximum PoE output power of the whole machine is 40W, and the maximum PoE output power of a single port is 15.4W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).

Product model	TL-SF1005SPE	TL-SF1005SP
100 Gigabit RJ45 port	5	5
PoE port	4FE	4FE
The maximum PoE output power of the whole machine	57W	40W
Power consumption of the whole machine	67W	46W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af	IEEE 802.3af
The maximum PoE output power of the port	30W	15.4W
Mode switch	not
MAC address capacity	2K
Housing size(mm)	173×119×37
Enter the power supply	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing

TL-SF1005SP is a molded-case unmanaged PoE switch independently developed by TP-LINK, with 4 100 Gigabit ports supporting PoE power supply, in line with IEEE 802.3af standard, with a single-port PoE power of 15.4W and a maximum PoE output power of 40W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.

5 x 10/100M adaptive RJ45 ports, ports 1~4 support IEEE 802.3af standard PoE power supply
The single-port POE power can reach 15.4W, and the maximum PoE output power of the whole machine is 40W
Supports IEEE802.3X full-duplex flow control and backpressure half-duplex flow control
Auto MDI/MDIX is supported
All ports are capable of wire-speed forwarding

All 100 megabits

Five 10/100 Base-T RJ45 ports are available.
All ports support non-blocking wire-speed forwarding for smoother transmission.
Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

Four 10/100 Base-T RJ45 ports support PoE power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
In line with the IEEE 802.3af PoE power supply standard, the maximum PoE output power of the whole machine is 40W, and the maximum PoE output power of a single port is 15.4W.
Automatically identify PoE devices for power supply without damaging non-PoE devices.
PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

It's easy to use

Plug and play, no configuration required, simple and convenient.
Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
