26 port Gigabit uplink Ethernet PoE switches

TL-SL1226MP is a gigabit uplink unmanaged PoE switch independently developed by TP-LINK, with 24 100 Gigabit ports supporting PoE+ power supply, in line with IEEE 802.3af/at standard, with a single-port PoE power of up to 30W and a maximum PoE output power of 180W. TL-SL1226MP supports three working modes: standard switching, video surveillance, and VLAN isolation, adapting to various complex environments. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.

• 24 x 10/100Base-T RJ45 ports support PoE+ power supply
• 2 x 10/100/1000Base-T RJ45 ports
• The maximum PoE power supply power of the whole machine is 180W, and the maximum PoE power supply power of a single port is 30W
• PoE power delivery ports support the priority mechanism
• It supports three working modes: standard switching, video surveillance, and VLAN isolation

100 Gigabit access, Gigabit uplink

• Provides 24 x 10/100Base-T RJ45 ports, 2 x Gigabit RJ45 ports.
• All ports support non-blocking wire-speed forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• The 24 10/100Base-T RJ45 ports support PoE+ power supply to meet the needs of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 180W, and the maximum PoE output power of a single port is 30W.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

Three modes of operation

• The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
• The video surveillance mode ---- specially designed for surveillance application scenarios to improve the stuttering and mosaic phenomenon in the surveillance network.
• In VLAN isolation mode--- 24 Gigabit ports are isolated from each other, which is suitable for scenarios where wireless APs are connected, suppressing network storms, and improving network performance.

The equipment is stable and reliable

• The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.

It's easy to use

• Plug and play, no configuration required, simple and convenient.

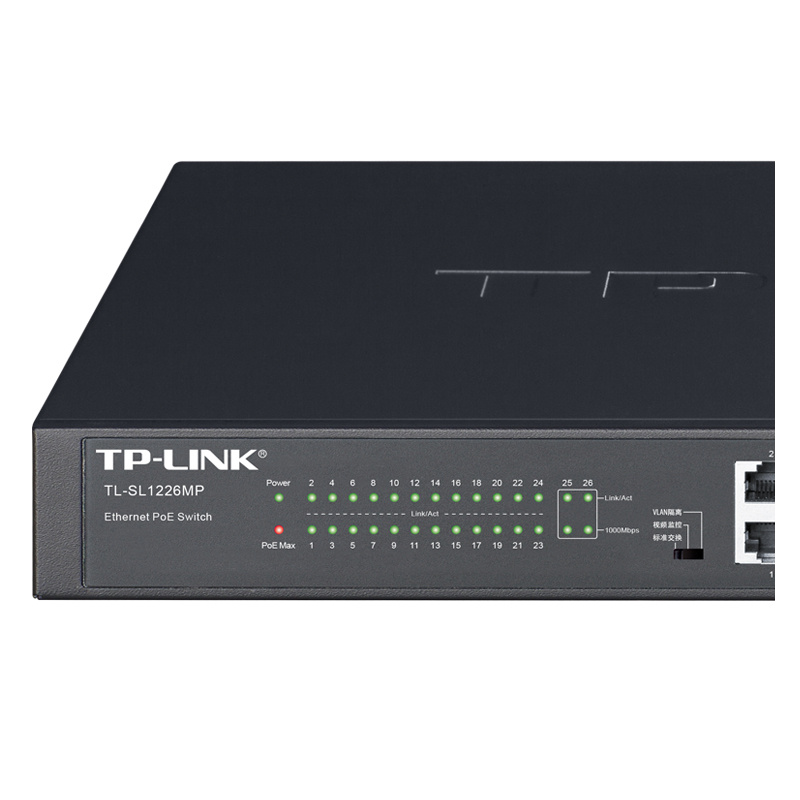

• Users can easily understand the operating status of the device through the power indicator, port status indicator (Link/Act), and rate indicator (1000Mbps).

Product model	TL-SL1226PE	TL-SL1226P-Combo	TL-SL1226MP	TL-SL1218PE-Combo
100 Gigabit RJ45 port	24	24	24	16
Gigabit RJ45 port	2	2	2	2
Gigabit SFP port	2 (multiplexing)	2 (multiplexing)	0	2 (multiplexing)
PoE port	24FE	24FE	24FE	16FE
PoE output power of the whole machine	384W	235W	180W	235W
Power consumption of the whole machine	433W	265W	206W	263W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
The maximum output power of the port PoE	30W
MAC address capacity	8K
Working mode	Standard switching, video surveillance, VLAN isolation
Housing size(mm)	440×330×44	440×180×44
Enter the power supply	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
