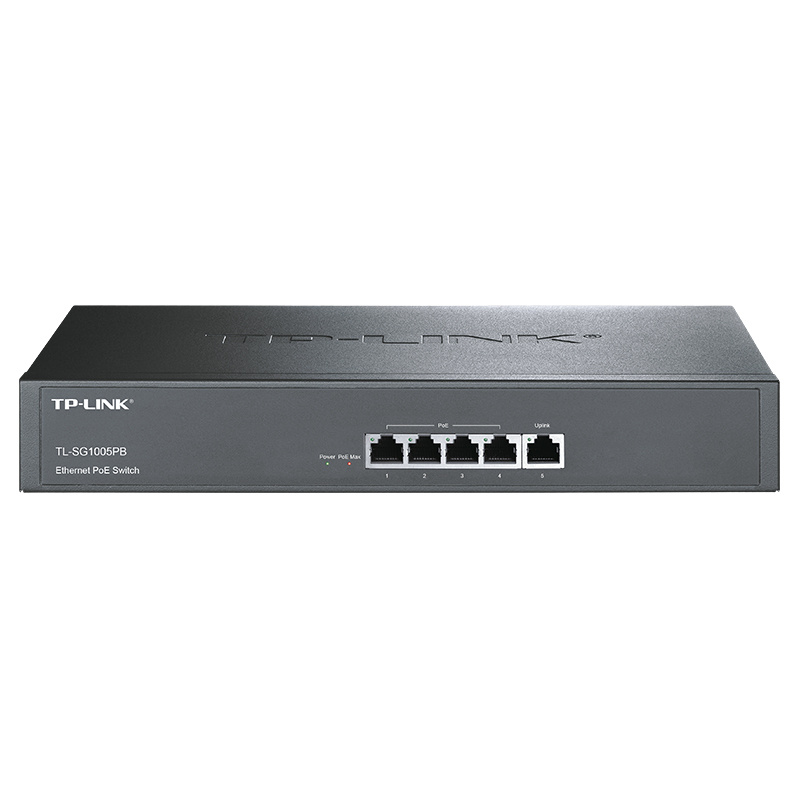

5 x 10/100/1000Mbps RJ45 ports Full Gigabit Ethernet PoE switch

TL-SG1005PB is a fully gigabit unmanaged PoE switch independently developed by TP-LINK, in which ports 1-4 support PoE++ function, comply with IEEE 802.3bt/at/af standard, single-port PoE power up to 90W, and the maximum PoE output power of the whole machine is 242W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Simple and convenient to use, no configuration required, plug and play, can flexibly expand home and office networks without being limited by power line layout.

• Four 10/100/1000Base-T RJ45 ports support PoE++ power supply
• One 10/100/1000Base-T RJ45 uplink port
• Supports IEEE 802.3 bt/at/af PoE power supply standard
• The maximum PoE power supply power of the whole machine is 242W, and the maximum PoE power supply power of a single port is 90W
• PoE power delivery ports support the priority mechanism

Full Gigabit ports

• Provides 5 x 10/100/1000Base-T RJ45 ports, including 4 PoE ports and 1 Uplink port.
• All ports support Gigabit non-blocking line-rate forwarding for smoother transmission.
• Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.

PoE power supply function

• Four 10/100/1000Base-T RJ45 ports support PoE++ power supply to meet the PoE power supply requirements of scenarios such as visual security, teleconferencing systems, and wireless coverage.
• It complies with IEEE 802.3bt/at/af PoE power supply standards, with a maximum PoE output power of 242W and a maximum PoE output power of 90W for a single port.
• Automatically identify PoE devices for power supply without damaging non-PoE devices.
• PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

The equipment is stable and reliable

• The low-power design of the host and the fan enhance heat dissipation to ensure the stable operation of the product.
• It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.

It's easy to use

• Plug and play, no configuration required, simple and convenient.
• Users can easily understand the working status of the device through the power indicator (Power), power warning light (PoE Max), and port status indicator (Link/Act).

Hardware specifications

Network standards	IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3x、IEEE 802.3af、IEEE 802.3at、IEEE 802.3bt
Port	5 x 10/100/1000Mbps RJ45 ports, of which 1-4 ports support PoE function
Light	Each device has 1 Power indicator Each port has 1 Link/Act indicator
Network media	10BASE-T: Category 3, 4, 5 unshielded twisted pair (≤100m) 100BASE-TX: Category 5 and above unshielded twisted pair (≤100m) 1000BASE-T: Category 5 and above unshielded/shielded twisted pair (≤100m)
Performance	Store-and-forward A MAC address table depth of 2K is supported
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
Enter the power supply	220V， 50Hz
Dimensions(L*W*H)	294mm×180mm×44mm

Software Specifications

Basic functions

Supports IEEE 802.3af/at/bt compliant powered devices (PDs) PoE port prioritization mechanism IEEE802.3X full-duplex flow control and backpressure half-duplex flow control Wire-speed forwarding
