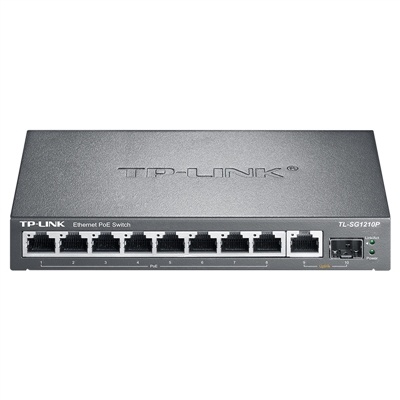

TL-SG1210P is a fully gigabit unmanaged PoE switch independently developed by TP-LINK, in which ports 1~8 support PoE+ function, in line with IEEE 802.3af/at standard, single-port PoE power up to 30W, and the maximum PoE output power of the whole machine is 57W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, simple and convenient to use, suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to build cost-effective PoE networks.
- Eight 10/100/1000Base-T RJ45 ports support PoE+ power supply
- 1 x 10/100/1000Base-T RJ45 port and 1 x independent Gigabit SFP port
- The maximum PoE power supply power of the whole machine is 57W, and the maximum PoE power supply power of a single port is 30W
- PoE power delivery ports support the priority mechanism
- It supports three working modes: video surveillance, VLAN isolation, and standard switching
Full Gigabit ports
- Provides 9 x 10/100/1000Base-T RJ45 ports and 1 x independent Gigabit SFP port.
- All ports support Gigabit non-blocking line-rate forwarding for smoother transmission.
- Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.
PoE power supply function
- Eight 10/100/1000Base-T RJ45 ports support PoE+ power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
- In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 57W, and the maximum PoE output power of a single port is 30W.
- Automatically identify PoE devices for power supply without damaging non-PoE devices.
- PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.
Three modes of operation
- The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
- The video surveillance mode ---- specially designed for surveillance application scenarios to improve the stuttering and mosaic phenomenon in the surveillance network.
- VLAN isolation mode --- suitable for scenarios where wireless APs are connected, suppressing network storms and improving network performance.
The equipment is stable and reliable
- The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
- It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.
It's easy to use
- Plug and play, no configuration required, simple and convenient.
- Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
| Product model | TL-SG1210PT | TL-SG1210P | TL-SG1009PH | TL-SG1005PE | TL-SG1005P |
| Gigabit RJ45 port | 9 | 9 | 9 | 5 | 5 |
| Gigabit SFP port | 1 | 1 | 0 | 0 | 0 |
| PoE port | 8GE | 8GE | 8GE | 4GE | 4GE |
| PoE output power of the whole machine | 120W | 57W | 76W | 62W | 60W |
| Power consumption of the whole machine | 134W | 68W | 88W | 70W | 66W |
| PoE standard | IEEE 802.3at(PoE+)、IEEE 802.3af |
| Mode switch | Standard switching, video surveillance, VLAN isolation | not |
| MAC address capacity | 4K | 4K | 2K | 2K | 2K |
| Housing size(mm) | 171×98×27 | 171×98×27 | 226×131×35 | 226×131×35 | 100×98×25 |
| Enter the power supply | 53.5VDC/2.4A | 53.5VDC/1.22A | 220VAC , 50Hz | 53.5VDC/1.22A |
| Use environment | - Operating temperature: 0°C~40°C
- Storage temperature: -40°C~70°C
- Operating humidity: 10%~90% RH non-condensing
- Storage humidity: 5%~90% RH non-condensing
|
TL-SG1210P is a fully gigabit unmanaged PoE switch independently developed by TP-LINK, in which ports 1~8 support PoE+ function, in line with IEEE 802.3af/at standard, single-port PoE power up to 30W, and the maximum PoE output power of the whole machine is 57W. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, simple and convenient to use, suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to build cost-effective PoE networks.
Eight 10/100/1000Base-T RJ45 ports support PoE+ power supply
1 x 10/100/1000Base-T RJ45 port and 1 x independent Gigabit SFP port
The maximum PoE power supply power of the whole machine is 57W, and the maximum PoE power supply power of a single port is 30W
PoE power delivery ports support the priority mechanism
It supports three working modes: video surveillance, VLAN isolation, and standard switching
Full Gigabit ports
Provides 9 x 10/100/1000Base-T RJ45 ports and 1 x independent Gigabit SFP port.
All ports support Gigabit non-blocking line-rate forwarding for smoother transmission.
Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.
PoE power supply function
Eight 10/100/1000Base-T RJ45 ports support PoE+ power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 57W, and the maximum PoE output power of a single port is 30W.
Automatically identify PoE devices for power supply without damaging non-PoE devices.
PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.
Three modes of operation
The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
The video surveillance mode ---- specially designed for surveillance application scenarios to improve the stuttering and mosaic phenomenon in the surveillance network.
VLAN isolation mode --- suitable for scenarios where wireless APs are connected, suppressing network storms and improving network performance.
The equipment is stable and reliable
The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.
It's easy to use
Plug and play, no configuration required, simple and convenient.
Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
