Managed PoE switches

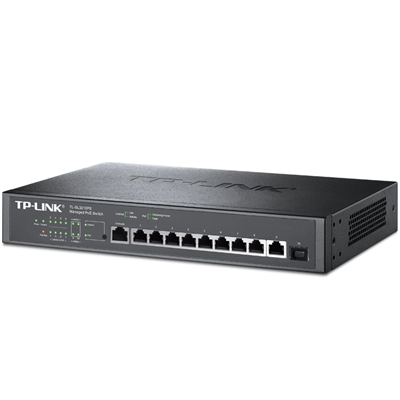

TP-LINK's newly developed 3 series Gigabit uplink managed PoE switches use a new generation of high-performance hardware and software platforms to provide flexible 100 Gigabit access and cost-effective Gigabit uplink ports, support complete security protection mechanisms, perfect ACL/QoS policies and rich VLAN functions, are easy to manage and maintain, and are widely used in small and medium-sized enterprises, hotels and campus network access and aggregation application scenarios.

• 8 x 10/100Base-T RJ45 ports (PoE+ power supply)
• One 10/100/1000Base-T RJ45 port and one independent Gigabit SFP port
• The PoE output power of the whole machine is up to 118W, and the maximum PoE output power of a single port is up to 30W
• Supports quaternary binding, ARP/IP/DoS protection, and 802.1X authentication
• IEEE 802.1Q VLANs, QoS, ACLs, spanning trees, multicast, and IPv6 are supported
• Supports port security, port monitoring, and port isolation
• Web management, CLI command line, and SNMP are supported

100 Gigabit access, Gigabit uplink

• The full series supports the combination of "100 Gigabit Ethernet port + Gigabit Ethernet port/optical port", which is convenient for users to flexibly network and meet the networking needs of various scenarios.
• Provide 8/16/24 multi-specification port products, all ports have wire-speed forwarding capabilities to meet the needs of different users.

Strong business processing capabilities

• IEEE 802.1Q VLANs are supported, allowing users to flexibly divide VLANs according to their needs.
• Voice VLANs are supported, and QoS parameters are configured for voice data flows to improve the transmission priority of voice data flows and ensure call quality.
• It supports QoS, three priority modes based on port, 802.1P-based and DSCP-based, and four queue scheduling algorithms of Equ, SP, WRR, and SP+WRR.
• ACLs are supported to filter packets by configuring matching rules, processing operations, and time permissions, providing flexible security access control policies.
• It supports IGMP V1/V2 multicast protocol and IGMP snooping to meet the requirements of multi-terminal HD video surveillance and video conferencing access.
• Multicast VLANs and multicast filtering are supported to efficiently transmit data, save network bandwidth, and reduce network load.
• Port monitoring is supported, and a copy of the data packets of the monitored port is copied to the monitored port to implement network monitoring.

Complete security protection mechanism

• Supports IP address, MAC address, VLAN, and port quaternary binding to filter data packets.
• Supports ARP protection against ARP spoofing and ARP flood attacks, such as gateway spoofing and man-in-the-middle attacks, which are common in LANs.
• IP source protection is supported to prevent illegal address spoofing, including MAC address spoofing, IP spoofing, and MAC/IP spoofing.
• DoS protection is supported, and attacks such as Land Attack, Scan SYNFIN, Xmascan, and Ping Flooding are supported.
• It supports 802.1X authentication, provides authentication functions for LAN computers, and controls the authorization status of controlled ports according to the authentication results.
• Port security is supported, which stops learning when the number of MAC addresses learned on a port reaches the maximum number to prevent MAC address attacks and control port network traffic.

Versatile reliability protection

• Supports STP/RSTP/MSTP SPANNING TREE protocol to eliminate Layer 2 loops and implement link backup.
• Spanning tree security functions are supported to prevent devices in a spanning tree network from various forms of malicious attacks.
• Static aggregation and dynamic aggregation are supported, effectively increasing link bandwidth, implementing load balancing, link backup, and improving link reliability.

PoE power supply function

• The PoE model supports PoE+ power supply and follows the IEEE 802.3af/at standard to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• You can set the power supply control of PoE ports based on user-defined time periods on the web management interface.
• You can configure the PoE port priority on the web management interface, and when the remaining power is insufficient, the power supply of the high-priority port is guaranteed.
• In PoE models, the maximum PoE output power per port can reach 30W, and users can set the maximum power that can be provided by the port on the web management interface.

Easy operation and maintenance

• Supports multiple management and maintenance methods, such as web management, CLI command line (console, Telnet), and SNMP (V1/V2/V3).
• Supports HTTPS, SSL V3, TLSV1, SSHV1/V2 and other encryption methods for safer management.
• RMON, system logs, and port traffic statistics are supported, which is convenient for network optimization and transformation.
• Supports cable detection, ping detection, and Tracert detection operations to easily analyze faulty network nodes.
• It supports LLDP, which is convenient for the network management system to query and judge the communication status of the link.
• CPU monitoring, memory monitoring, ping detection, Tracert detection, and cable detection are supported.

Product model	TL-SL3226PE-Combo	TL-SL3226P-Combo	TL-SL3218PE-Combo	TL-SL3210PE
100 Gigabit RJ45 port	24	24	16	8
Gigabit RJ45 port	2	2	2	1
Gigabit SFP port	2 (multiplexing)	2 (multiplexing)	2 (multiplexing)	1 (Independent)
RJ45 Console port	1
PoE port	24FE	24FE	16FE	8FE
PoE output power of the whole machine	384W	235W	235W	118W
Power consumption of the whole machine	433W	268W	267W	136W
PoE standard	IEEE 802.3at(PoE+)、IEEE 802.3af
MAC address capacity	8K	8K	8K	8K
VLAN	4K VLANs are supported 802.1Q VLANs, Guest VLANs, and Voice VLANs are supported
PoE	PoE port priority can be set You can set the PoE power supply time period You can set the Power Limit port
MAC address table	Complies with the IEEE 802.1d standard Automatic MAC address learning and aging are supported Static and dynamic address tables are supported
Safety features	Hierarchical management and password protection based on users You can restrict user access based on port number, IP address, and MAC address Supports HTTPS, SSL V3, TLS V1, and SSH V1/V2 IP-MAC-PORT-VLAN quadernary binding is supported ARP protection, IP source protection, and DoS protection are supported DHCP snooping and DHCP attack protection are supported 802.1X authentication and AAA are supported Port security and port isolation are supported CPU protection is supported
Access Control (ACL)	L2 (Layer 2) ~ L4 (Layer 4) packet filtering is supported Port mirroring, port redirection, flow rate limiting, and QoS remarking are supported
Quality of Service (QoS)	Supports 8 port queues Port priority, 802.1P priority, and DSCP priority are supported SP, WRR, SP+WRR, and Equ priority scheduling algorithms are supported
Spanning trees	Supports STP (IEEE 802.1d), RSTP (IEEE 802.1w) and MSTP (IEEE 802.1s) protocols Loop protection, root bridge protection, TC protection, BPDU protection, and BPDU filtering are supported
Manage maintenance	WEB MANAGEMENT (HTTP, HTTPS, SSL V3, TLS V1) CLI (Telnet, SSH V1/V2, local serial port) SNMP V1/V2/V3 is supported, and it is compatible with public MIBS and TP-LINK private MIBs Support LLDP and RMON ARP protection, IP source protection, and DoS protection are supported CPU monitoring and memory monitoring are supported Supports system logs and hierarchical warnings Ping, Tracert, and cable detection are supported
Housing size(mm)	440×330×44	440×180×44	440×180×44	294×180×44
Enter the power supply	220VAC , 50Hz
Use environment	Operating temperature: 0°C~40°C Storage temperature: -40°C~70°C Operating humidity: 10%~90% RH non-condensing Storage humidity: 5%~90% RH non-condensing
