TL-SF1005PF is an unmanaged PoE switch independently developed by TP-LINK, with 4 100 Gigabit ports supporting PoE+ power supply, compliant with IEEE 802.3af/at standard, with a single-port PoE power of 30W and a maximum PoE output power of 57W. The device supports two working modes: standard switching and 1~4 extension (10Mbps). Extended mode enables long-distance data and power transmission between standard PSE power supply equipment and standard PD loads. As a PoE power supply device, it can automatically detect and identify the powered device that meets the standard and supply it with network cables. Plug-and-play, no configuration required, simple and convenient to use, meet the needs of high-density PoE power supply network environment, suitable for hotels, campuses, factory dormitories, small and medium-sized enterprises to build a cost-effective network.
- Four 10/100 Base-T RJ45 ports support PoE+ power supply
- 1 x 10/100 Base-T RJ45 uplink port
- The PoE power supply power of the whole machine is up to 57W, and the PoE power supply power of a single port is up to 30W
- Supports IEEE 802.3af/at PoE power supply standard
- PoE power delivery ports support the priority mechanism
- The PoE port supports extended mode, which can transmit data and power over long distances (200~300m).
All 100 megabits
- Five 10/100 Base-T RJ45 ports are available.
- All ports support non-blocking wire-speed forwarding for smoother transmission.
- Supports IEEE 802.3x full-duplex flow control and backpressure half-duplex flow control.
PoE power supply function
- Four 10/100 Base-T RJ45 ports support PoE+ power supply to meet the requirements of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
- In line with the IEEE 802.3af/at PoE power supply standard, the maximum PoE output power of the whole machine is 57W, and the maximum PoE output power of a single port is 30W.
- Automatically identify PoE devices for power supply without damaging non-PoE devices.
- PoE ports support a priority mechanism to ensure the power supply of high-priority ports when the remaining power is insufficient, so as to prevent devices from overloading.

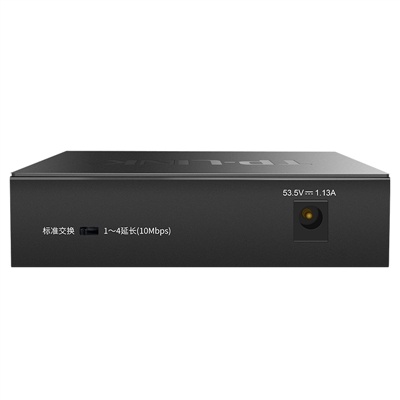

Two modes of operation
- The standard switching mode ---- all ports communicate freely, which is suitable for common data transmission environment;
- 1~4 extended (10Mbps) mode---- designed for monitoring application scenarios, No. 1~4 PoE ports can transmit data and power for standard PD loads such as IPC over long distances, and the transmission distance can reach 200~300m. (Differences in the quality of network cables will affect the transmission distance)
The equipment is stable and reliable
- The low-power design of the host and the fan strengthen the heat dissipation to ensure the stable operation of the product.
- It adopts TP-LINK's self-developed power supply and high redundancy design to provide long-term and stable PoE power output.
It's easy to use
- Plug and play, no configuration required, simple and convenient.
- Users can easily understand the working status of the device through the power indicator (Power) and port status indicator (Link/Act).
| Product model | TL-SF1008P | TL-SF1006P | TL-SF1005PE | TL-SF1005PF | TL-SF1005P | TL-SF1005MP |
| 100 Gigabit RJ45 port | 8 | 6 | 5 | 5 | 5 | 5 |
| PoE port | 4FE | 4FE | 4FE | 4FE | 4FE | 4FE |
| The maximum PoE output power of the whole machine | 57W | 57W | 62W | 57W | 57W | 21W |
| Power consumption of the whole machine | 68W | 68W | 72W | 68W | 68W | 25W |
| PoE standard | IEEE 802.3af | IEEE 802.3at(PoE+)、IEEE 802.3af | IEEE 802.3af |
| The maximum PoE output power of the port | 15.4W | 30W | 15.4W |
| Mode switch | not | Standard Switching:
1~4 Extensions (10Mbps) | not |
| MAC address capacity | 2K |
| Housing size(mm) | 158×100×25 | 100×98×25 | 226×131×35 | 100×98×25 | 100×98×25 | 100×98×25 |
| Enter the power supply | 53.5VDC/1.22A | 220VAC , 50Hz | 53.5VDC/1.22A | 53.5VDC/0.45A |
| Use environment | - Operating temperature: 0°C~40°C
- Storage temperature: -40°C~70°C
- Operating humidity: 10%~90% RH non-condensing
- Storage humidity: 5%~90% RH non-condensing
|
