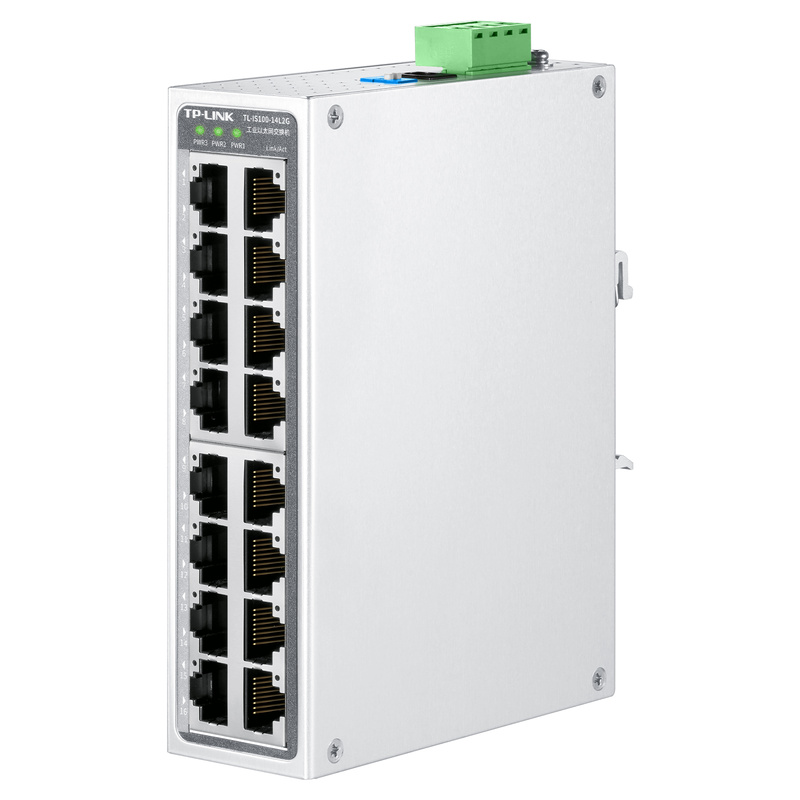

TL-IS100-14L2G is a TP-LINK industrial Ethernet switch designed for industrial environments. It provides 14 100 Gigabit adaptive Ethernet interfaces and 2 Gigabit adaptive Ethernet interfaces.
- It provides 14 Gigabit adaptive RJ45 ports and 2 Gigabit adaptive RJ45 ports
- Industrial working temperature: -40°C~75°C
- Wide voltage input: 9.6V~60VDC
- Small size (137 mm *100 mm *38 mm), better adaptable to industrial environment
- Multiple installation methods: rail installation + wall mounting
- IP30 protection: reduce the impact of dust
- VLAN and broadcast storm suppression switches are provided to adapt to various complex network environments
- Aluminum alloy shell, conformal coating protection, strong and durable
- Three-way power input, redundant backup, greatly improve the reliability of product power supply
- EMC high protection level, not afraid of all kinds of harsh environments
- *The industrial switch is not equipped with a power supply at the factory, if you need to use the power supply, please purchase it separately
- It is recommended to buy our industrial-grade power supply: TL-IP75-24 or TL-IP75D-24
-40°C~75°C working temperature design, no fear of extreme temperatures
TL-IS100-14L2G Ethernet switch is designed in strict accordance with the working temperature of -40°C~75°C, selects industrial-grade devices, and adopts natural heat dissipation mode to ensure that the equipment works stably for a long time in this temperature range and meets all kinds of harsh environments.
Industrial-grade protection design
High-standard electromagnetic anti-interference protection design, suitable for various harsh electromagnetic environments such as electric power and industrial plants.
Aluminum alloy shell and electroless nickel gold PCB board greatly improve the anti-corrosion performance of the equipment.
The housing can be protected by IP30 to reduce the impact of dust on the normal operation of the equipment.
9.6V~60VDC wide voltage input, multiple power protection
It supports simultaneous access of three power supplies, and the power supply is redundant to ensure the uninterrupted work of the equipment.
It supports a wide voltage input of 9.6V~60VDC, and is suitable for various industrial power supplies.
Three types of power protection are provided to greatly improve the reliability of power supply to the switch.
Featured devices
The PCB board is made of electroless nickel gold plate, which has high corrosion resistance, oxidation resistance, and excellent electrical properties.
Select high-specification and long-life Japanese capacitors to greatly improve the service life of the product.
The circuit design of the highly redundant system avoids the sudden change of the external environment from affecting the normal operation of the equipment.
TP-LINK's rigorous industrial-grade production and testing process is adopted to effectively release the electrical stress of components and greatly improve the reliability of equipment.
Compact body design, metal shell, efficient heat dissipation
The size of the fuselage is only 137mm*100mm*38mm, which can be very convenient to place in a compact work cabinet, and the high thermal conductivity aluminum alloy shell has better heat dissipation effect.
DIN rail installation is easy and flexible
The TL-IS100-14L2G can be easily mounted on DIN rails and wall-mounted, and can be flexibly selected according to your needs, making the use of industrial-grade Ethernet switches simple and reliable.
Excellent device compatibility
TP-LINK has more than 100 million Ethernet switch devices running all over the world, serving all walks of life, ensuring that TP-LINK Ethernet switches can be compatible with all kinds of network equipment and production equipment.
Technical Specifications
| Protocol Standards | - IEEE 802.3,802.3i,802.3u,802.3x
- Compatible with Modbus TCP, Ethernet/IP, Profinet and other protocols, it can realize transparent data transmission
|
| Port morphology | - 14 100 Gigabit adaptive RJ45 ports
- 2 Gigabit adaptive RJ45 ports
|
| Light | - 16 status indicators Link/ACT
- PWR1，PWR2，PWR3
|
| Power input | - DC Input Voltage 12/24/48 VDC (9.6~ 60 VDC)
- Input current 0.7A@12V
- Support reverse polarity protection
|
| DIP | - Broadcast storm protection is supported
- VLAN isolation is supported
|
| Structure | - IP30 degree of protection
- Product size: 137mm*100mm*38mm
- Rail/wall mounting
|
| Temperature | - Operating temperature -40°C — 75°C
- Storage temperature -40°C — 85°C
|
| Humidity | - Operating humidity 5%RH — 95%RH, non-condensing
- Storage humidity 5%RH — 95%RH, non-condensing
|
| Certification standards _EMS | - CE,UKCA
- IEC/EN 61000-4-2,Level 4
- IEC/EN 61000-4-3,Level 4
- IEC/EN 61000-4-4,Level 4
- IEC/EN 61000-4-5,Level 3
- IEC/EN 61000-4-6,Level 3
- IEC/EN 61000-4-8,Level 5
- IEC/EN 61000-4-9,Level 5
- IEC/EN 61000-4-10,Level 5
|
| The maximum power of the whole machine | |
Other
| Packing accessories | - Hanging wall pieces
- Warranty card
- User Manual
|
