10 Gigabit uplink stacked Layer 3 managed PoE switches

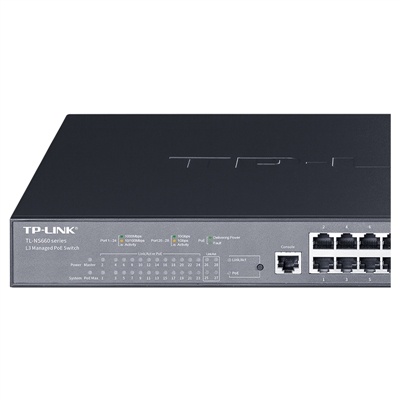

TL-NS660-24GP4T is a newly developed cassette 10 Gigabit uplink stacked Layer 3 managed PoE switch by TP-LINK, which adopts a new generation of high-performance hardware and software platform, provides flexible Gigabit access and cost-effective 10 Gigabit uplink ports, and 24 Gigabit RJ45 ports support IEEE 802.3at/af standard PoE power supply, and the maximum PoE output power of the whole machine reaches 396W. The device also supports stacking, multiple Layer 3 routing protocols, complete security protection mechanisms, perfect ACL/QoS policies, and rich VLAN functions, which are easy to manage and maintain, and can meet the high-speed and high-density access requirements of PoE networking in hotels, campuses, enterprises, and campuses.

• 24 Gigabit RJ45 ports, all supporting IEEE802.3at/af standard PoE+ power supply
• 4 10 Gigabit SFP+ ports
• The maximum PoE power supply power of the whole machine is 396W, and the maximum PoE power supply power of the port is 30W
• It supports TP-LINK commercial cloud platform management
• Stacking support, up to 6 stacking units
• OSPF, RIP, and static routing protocols are supported
• Supports quaternary binding, ARP/IP/DoS protection, and 802.1X authentication
• VLANs, QoS, ACLs, spanning trees, multicast, and IPv6 are supported

Gigabit access, 10 Gigabit uplink

• The TL-NS660-24GP4T provides 24 Gigabit RJ45 electrical ports and 4 10 Gigabit SFP+ optical ports.
• All ports are capable of wire-speed forwarding.

PoE power supply function

• The 24 Gigabit RJ45 ports all support IEEE 802.3af/at standard PoE power supply, meeting the needs of PoE power supply in scenarios such as visual security, teleconferencing systems, and wireless coverage.
• The maximum PoE output power of the whole machine is 396W, and the port PoE output power is 30W.
• You can set the power supply control of PoE ports based on user-defined time periods on the web management interface.
• You can configure the PoE port priority on the web management interface, and when the remaining power is insufficient, the power supply of the high-priority port is guaranteed.

Strong business processing capabilities

• OSPF, RIP, and RIPng dynamic routing protocols are supported, solving the routing and routing problem of small and medium-sized networks after subnets are divided, and simplifying network configuration.
• Static routes are supported, and the administrator manually configures route entries to achieve simple, efficient, and reliable communication between different network segments.
• DHCP servers are supported, which assign IP addresses to hosts in the network.
• DHCP trunking is supported, and switches in different interfaces or subnets can also obtain IP addresses, reducing the number of DHCP servers.
• Proxy ARP is supported, so that hosts in different physical networks on the same network segment can communicate normally.
• IEEE 802.1Q VLAN, MAC VLAN, protocol VLAN, and private VLAN are supported, allowing users to flexibly divide VLANs according to different requirements.
• GVRP is supported to implement dynamic distribution, registration, and attribute propagation of VLANs, reducing the amount of manual configuration and ensuring the correctness of configuration.
• The VLAN VPN function encapsulates the outer VLAN tag for the user's private network packets at the public network access end, so that the packets carry two layers of VLAN tags across the public network.
• It supports QoS, three priority modes based on port, 802.1P-based and DSCP-based, and four queue scheduling algorithms of Equ, SP, WRR, and SP+WRR.
• ACLs are supported to filter packets by configuring matching rules, processing operations, and time permissions, providing flexible security access control policies.
• It supports IGMP V1/V2 multicast protocols, MLD snooping, and IGMP snooping to meet the requirements of multi-terminal HD video surveillance and video conferencing access.

Complete security protection mechanism

• Supports IP address, MAC address, VLAN, and port quaternary binding to filter data packets.
• Supports ARP protection against ARP spoofing and ARP flood attacks, such as gateway spoofing and man-in-the-middle attacks, which are common in LANs.
• IP source protection is supported to prevent illegal address spoofing, including MAC address spoofing, IP spoofing, and MAC/IP spoofing.
• DoS protection is supported, and attacks such as Land Attack, Scan SYNFIN, Xmascan, and Ping Flooding are supported.
• It supports 802.1X authentication, provides authentication functions for LAN computers, and controls the authorization status of controlled ports according to the authentication results.
• Port security is supported, which stops learning when the number of MAC addresses learned on a port reaches the maximum number to prevent MAC address attacks and control port network traffic.
• Support DHCP Snooping, effectively eliminate private DHCP servers, and ensure the legitimacy of DHCP servers.

Versatile reliability protection

• Stacking is supported, and the stacked system is virtualized into a "distributed device", which can simplify management and improve system reliability.
• Supports STP/RSTP/MSTP production tree protocols to eliminate Layer 2 loops and implement link backup.
• Spanning tree security functions are supported to prevent devices in a spanning tree network from various forms of malicious attacks.
• Static aggregation and dynamic aggregation are supported, effectively increasing link bandwidth, implementing load balancing, link backup, and improving link reliability.

Easy operation and maintenance

• It supports the TP-LINK commercial cloud platform, which can easily realize remote management and maintenance of equipment and reduce on-site operation and maintenance costs
• Supports multiple management and maintenance methods, such as web management, CLI command line (console, Telnet), and SNMP (V1/V2/V3).
• Supports HTTPS, SSL V3, TLSV1, SSHV1/V2 and other encryption methods for safer management.
• RMON, system logs, and port traffic statistics are supported, which is convenient for network optimization and transformation.
• Supports cable detection, ping detection, and Tracert detection operations to easily analyze faulty network nodes.
• It supports LLDP, which is convenient for the network management system to query and judge the communication status of the link.
• CPU monitoring, memory monitoring, ping detection, Tracert detection, and cable detection are supported.
