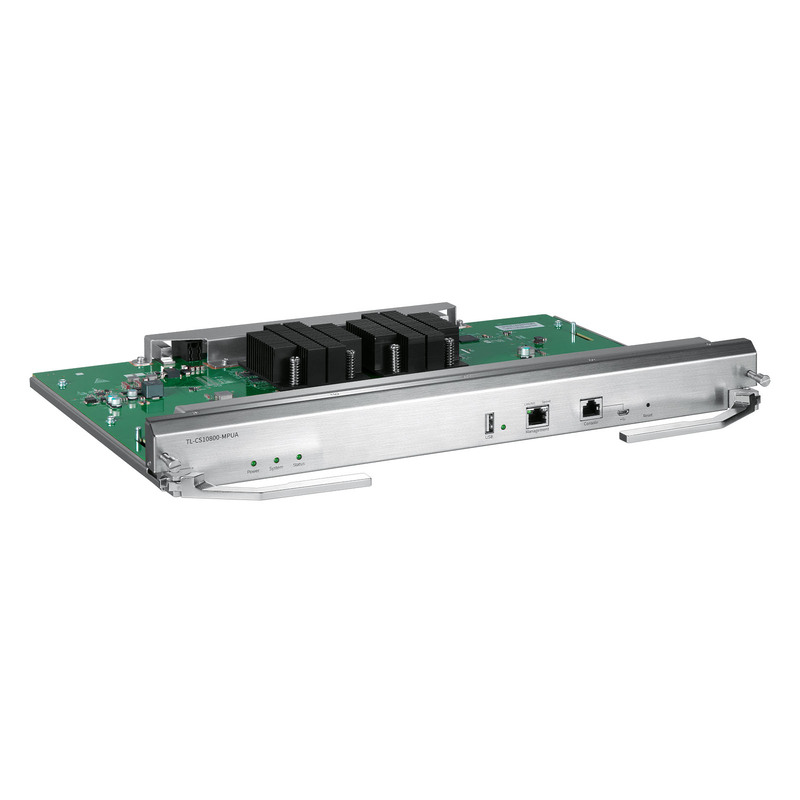

      TL-CS10808 master control processing unit

      ￥0 View Details
      Model: TL-CS10800-MPUA SKU: 1715824413336016896 Category: 100 mbit switch Brand: TP-LINK Condition: New Sealed Under Guarantee Product Selection Engineer: Huankanheng Order No: TL-CS10800-MPUA Shipping:
      Leading
      Warehouse

      TL-CS10800-MPUA is a main control board developed for the TL-CS10808 of TP-LINK modular switches. The main control board adopts a new generation of high-performance hardware and software platform to provide RJ45 management terminal port, RJ45 Console port and multiplex Micro USB Console port and USB port, easy to manage and maintain, suitable for enterprise and campus networking.

      • It provides RJ45 management port, RJ45 Console port, and multiplexed Micro USB Console port and USB port
      • Provide a Reset button
      • It supports TP-LINK commercial cloud platform management
      • Hot-swappable

      Hardware specifications

      Network standards
      • IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE802.3z, IEEE 802.3ae, IEEE 802.3ad, IEEE 802.3x, IEEE 802.1d, IEEE 802.1s, IEEE 802.1w, IEEE 802.1q, IEEE 802.1x, IEEE 802.1p
      Port
      • 1 x RJ45 management port
      • 1 x RJ45 Console port and 1 x Multiplex Micro USB Console port
      • 1 USB port
      Button
      • 1 Reset button
      Light
      • System status indicators: Power, System, Status, and management port indicators
      Hot-swappable
      • In the tank
      Enter the power supply
      • 100－240V～50/60Hz
      Use environment
      • Operating temperature: 0°C~40°C
      • Storage temperature: -40°C~70°C
      • Operating humidity: 10%~90% RH non-condensing
      • Storage humidity: 5%~90% RH non-condensing
