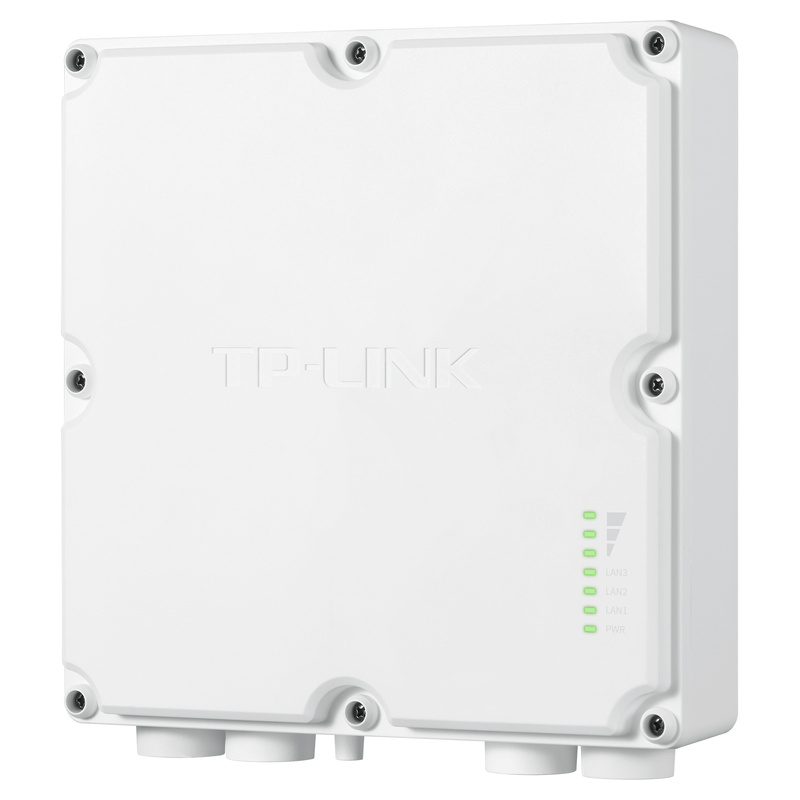

5GHz AX2400 WiFi 6 industrial grade bridge

• The next-generation Wi-Fi 6 technology theoretically supports a maximum wireless transmission rate of up to 2402Mbps
• The professional room shell body is designed, IP68 level dustproof and waterproof, and adapts to various harsh environments
• Built-in high-gain 15dBi directional antenna provides high-performance wireless
• Pure 5GHz frequency band, less interference, support 160MHz bandwidth, wireless transmission distance up to 20km+
• Full Gigabit port for better wireless performance

Hardware specifications

Installation:	Pole mounting
Wireless standards	IEEE 802.11a/n/ac/ax
Wireless rate	2402Mbps
Wireless	Operating frequency band: 5.15~5.25GHz, 5.735~5.835GHz
Maximum transmit power	26dBm
Antenna	Built-in 15dBi directional antenna
Transmission distance	THE MAXIMUM WIRELESS TRANSMISSION DISTANCE (IN A NON-INTERFERENCE ENVIRONMENT) IS 20 KM Recommended distance: 5KM
Interface	1 x 10/100/1000Mbps RJ45 port (LAN0/POE) 2 x 10/100/1000Mbps RJ45 ports (LAN1)
Power supply mode	Support 12-48V DC/Passive PoE/802.3at standard PoE power supply Comes with a 12V 2A DC power adapter from the factory
Light	PWR, 3 LAN port indicators, 3 signal strength indicators
Antenna coverage angle	Horizontal: 35° Vertical: 15°
Product dimensions	241*230*63(mm)
Use environment	Operating temperature: -40°C~75°C Storage temperature: -40°C~85°C Operating humidity: 10%~90%RH non-condensing Storage humidity: 5%~90%RH non-condensing
Dustproof and waterproof grade	IP68 rated for dust and water resistance
Power adapter	12V/2A
The maximum power of the whole machine	24W

Software Specifications

Wireless mode of operation	AP、Client
Network settings	LAN port connection: static IP, dynamic IP
Wireless setup	802.11a/n/ac/ax mode Automatic channel selection Transmit power adjustment WDS Wireless Security: WPA/WPA2/WPA3, WPA-PSK/WPA2-PSK (AES/TKIP) encryption SSID Broadcast/Hide Distance settings Channel bandwidth selection Advanced settings: Beacon time slot, RTS threshold, fragmentation threshold, DTIM interval, AP isolation, Short GI, and WMM
Manage maintenance	HTTP/HTTPS WEB MANAGEMENT System logs Time and NTP settings Ping watchdog
System tools	System status: signal strength, noise intensity, transmission CCQ, CPU usage, memory usage Condition Monitoring: Throughput/Wireless Clients/Interfaces/ARP Rate test Rate test Ping
System optimization	IGMP Snooping optimization Hardware watchdog

The next-generation Wi-Fi 6 technology theoretically supports a maximum wireless transmission rate of up to 2402Mbps
The professional room shell body is designed, IP68 level dustproof and waterproof, and adapts to various harsh environments
Built-in high-gain 15dBi directional antenna provides high-performance wireless
Pure 5GHz frequency band, less interference, support 160MHz bandwidth, wireless transmission distance up to 20km+
Full Gigabit port for better wireless performance
